$30.99
Share

.936 Dimpling Jig

(2 reviews) Write a Review
SKU:
DJ9
UPC:
810646030039
  • .936 Dimpling Jig
  • .936 Dimpling Jig
  • .936 Dimpling Jig
  • .936 Dimpling Jig
  • .936 Dimpling Jig
  • .936 Dimpling Jig
Add to Cart

Options

$30.99
Or

Info

SKU:DJ9 ,UPC:

Info

SKU:
DJ9
UPC:
810646030039

Description

Dimpling Jig for .936" Barrels

5  spacing for blocks with  .400" .425" .450"  .470" and .500" center to center

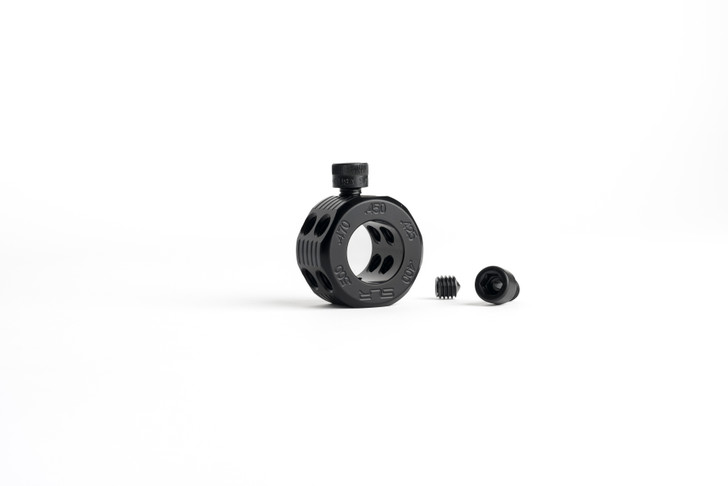

Includes Jig , Hardened Centering Screw and Custom Hardened Drill bushing

5/32" drill bit required.

7075 Billet T6 Aluminum

5 position flats for Vice mounted drilling to keep barrel stable



Drill bit and Allen Wrenches available separately


  • Numbers on Jig face the front (towards muzzle)
  • Spacing to be used goes on DIMPLE side with drill bushing (opposite gas port)
  • If using one dimple only, always dimple under gas port





Video Instruction courtesy of FITTY%PRODUCTIONS

(not new 5 spacing jig but same process)

https://vimeo.com/164471200



2 Reviews

View All
  • Brian - Jun 27th 2018

    5

    Just used this on my Wilson 24” Bull Barrel, and all I can say is WOW! It doesn’t get any easier then this! I slid it on the barrel, selected my spacing, lined up and tightened the set screw, drilled for approx ten seconds, moved over, repeated, then removed. Dimples were perfect and when I installed my SLR gas block it was perfectly aligned. Don’t think it could be any easier.

  • Troy Mesa - Jan 2nd 2017

    5

    This is my second jig from SLR Rifleworks, I purchased one for .750 and was impressed with it's ease of use and the fine machining and simplicity of design. I purchased the .936 jig and like the other jig, performed perfectly. For the price compared to the other jigs on the market you're getting your money's worth. The two spacing options make it versatile. The only have caveat is that I only have done one build in this size. I don't know if I will ever need to use it again. Now if SLR makes adapter insert sleeves with longer screws they could make a universal jig. Hint, hint!

2 Reviews

  • Brian - Jun 27th 2018

    5

    Just used this on my Wilson 24” Bull Barrel, and all I can say is WOW! It doesn’t get any easier then this! I slid it on the barrel, selected my spacing, lined up and tightened the set screw, drilled for approx ten seconds, moved over, repeated, then removed. Dimples were perfect and when I installed my SLR gas block it was perfectly aligned. Don’t think it could be any easier.

  • Troy Mesa - Jan 2nd 2017

    5

    This is my second jig from SLR Rifleworks, I purchased one for .750 and was impressed with it's ease of use and the fine machining and simplicity of design. I purchased the .936 jig and like the other jig, performed perfectly. For the price compared to the other jigs on the market you're getting your money's worth. The two spacing options make it versatile. The only have caveat is that I only have done one build in this size. I don't know if I will ever need to use it again. Now if SLR makes adapter insert sleeves with longer screws they could make a universal jig. Hint, hint!
